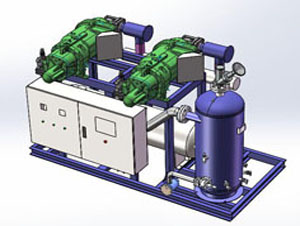

螺桿式單極并聯機組（低溫）

發布時間：2022-02-05人氣：74

產品特點；

1、采用國際知名品牌開利壓縮機，質量好、能效高

The units are equipped with world famous brand compressor (carrier), good quality and High efficiency.

2、能根據負荷進行無極能量調節(100%——15%)

It can provide a multiple energy level control 100%-15% according to actual situation.

3、強大的NSK滾動軸承設計無需油泵

Strong design of NSK strolling bearing ,no need oil pump

4、內置單向閥、安全閥有效防止關機反轉帶來的轉子磨損、有效保證壓縮

機安全運行

It has non-return valve and safety valve which avoid rotor being abrased when turn off the machine, which guarantees compressor safe operation effectively.

低溫標準配置：

螺桿壓縮機、儲液器 liquid receiver、儀表盤、高低壓力控制器、電控箱、油分離器、風冷式（水冷式）油冷卻器、經濟器、供液過濾器、吸氣過濾器、噴油組件

Low-temperature type standard configuration;

Screw compressor, liquid receiver, gauge panel, high and low pressure controller, electric cabinet, oil separator，water-cooled(air-cooled) type oil cooler, economizer, liquid supply filter, suction line filter, injection components.

高溫標準配置：

螺桿壓縮機、儲液器 liquid receiver、儀表盤、高低壓力控制器、電控箱、油分離器、供液過濾器、吸氣過濾器、噴液冷卻系統

High-temperature type standard configuration

Screw compressor, liquid receiver, gauge panel, high and low pressure controller, electric cabinet, oil separator, spray liquid cooling system, liquid supply filter, suction line filter, spray liquid cooling system.

螺桿式單級并聯機組低溫機型參數 Screw type single-stage parallel compressor unit(Low temperature)
型號 Model	冷凝溫度 condensing temp（℃)	蒸發溫度 Evaporating temp（℃）			壓機功率 compressor power（Kw）	儲液器 liquid receiver （L)	吸氣管 suction pipe (mm)	供液管 liquid supply pipe （mm）	尺寸 Dimension (LxWxHmm)	運行重量 Operating weight （Kg）
		-25	-30	-40
JY2-50LDK	35	150.6	122.6	75	75	120	133	42	2500x1550x1700	2080
	40	143	115.2	68.6
JY2-60LDK	35	162.4	133	83.4	90	150	133	42	2500x1550x1700	2130
	40	154.6	125.6	76.8
JY2-75LDK	35	225.4	183.8	115	112.5	150	133	42	2530x1550x1700	2230
	40	221.8	179.8	110
JY2-110LDK	35	307.6	251	157.2	165	250	159	54	2700x1610x1900	2460
	40	296.6	240.4	147.8
JY2-130LDK	35	420.2	341	206.4	195	250	159	54	3180x1610x1918	2680
	40	418.2	337.4	199.8
JY2-150LDK	35	410.8	340	221.6	225	300	159	54	3180x1610x1918	2830
	40	402	331.2	213.8
JY3-50LDK	35	225.9	183.9	112.5	112.5	150	2x108	54	3300x1550x1900	2600
	40	214.5	172.8	102.8
JY3-60LDK	35	243.6	199.5	125.1	135	200	2x108	54	3300x1550x1900	2710
	40	231.9	188.4	115.2
JY3-75LDK	35	338.1	275.7	172.5	168.75	250	2x108	54	3580x1550x1900	2860
	40	332.7	269.7	165
JY3-110LDK	35	461.4	376.5	235.8	247.5	350	2x133	54	4300x1610x1918	3100
	40	444.9	360.6	221.7
JY3-130LDK	35	630.3	511.5	309.6	292.5	400	2x159	54	4830x1550x1900	3450
	40	627.3	506.1	299.7
JY3-150LDK	35	616.2	510	332.4	337.5	500	2x159	76	4980x1610x1918	3600
	40	603	496.8	320.7
JY4-50LDK	35	301.2	245.2	150	150	200	2x108	54	4500x1550x1900	3030
	40	286	230.4	137.2
JY4-60LDK	35	324.8	266	166.8	180	250	2x108	54	4500x1550x1900	3160
	40	309.2	251.2	153.6
JY4-75LDK	35	450.8	367.6	230	225	300	2x133	54	4580x1550x2020	3320
	40	443.6	359.6	220
JY4-110LDK	35	615.2	502	314.4	330	450	2x133	76	4850x1610x2270	4620
	40	593.2	480.8	295.6
JY4-130LDK	35	840.4	682	412.8	390	500	2x159	76	5100x1610x2420	4730
	40	836.4	674.8	399.6
JY4-150LDK	35	821.6	680	443.2	450	600	2x159	76	5100x1610x2420	4850
